ROHM电阻器SMD产品型号识别,Rohm代理商 2017/1/12

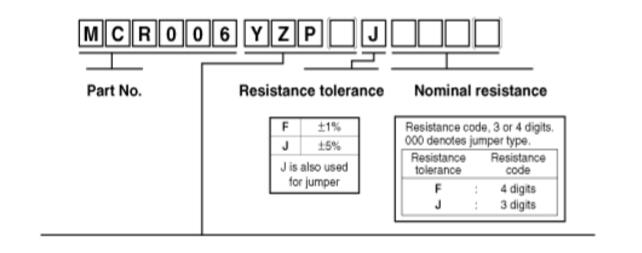

●厚膜电阻器 : 普通型

封装型号代码

Part No.	Code	Resistance tolerance		Packaging specifications	Reel	Basic ordering unit(pcs)
Part No.	Code	J(± 5%)	F(± 1%)	Packaging specifications	Reel	Basic ordering unit(pcs)
MCR006	YZP	◎	◎	Paper tape(2mmPitch)	f180mm (7in.)	15,000
MCR01	MZP	◎	◎	Paper tape(2mmPitch)	f180mm (7in.)	10,000
MCR03	EZP	◎	◎	Paper tape(4mmPitch)	f180mm (7in.)	5,000
MCR10	EZP	◎	◎	Paper tape(4mmPitch)	f180mm (7in.)	5,000
MCR18	EZP	◎	◎	Paper tape(4mmPitch)	f180mm (7in.)	5,000
MCR25	JZH	◎	◎	Embossed tape(4mmPitch)	f180mm (7in.)	4,000
MCR50	JZH	◎	◎	Embossed tape(4mmPitch)	f180mm (7in.)	4,000
MCR100	JZH	◎	◎	Embossed tape(4mmPitch)	f180mm (7in.)	4,000

Reel(φ180mm) : Compatible with JEITA standard "EIAJ ET-7200B"
◎ : Standard product

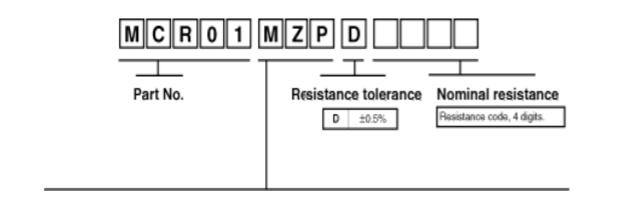

● 厚膜电阻器 : 精确型

封装型号代码

Part No.	Code	Resistance tolerance	Packaging specifications	Reel	Basic ordering unit(pcs)
Part No.	Code	D(± 0.5%)	Packaging specifications	Reel	Basic ordering unit(pcs)
MCR01	MZP	◎	Paper tape(2mmPitch)	f180mm (7in.)	10,000
MCR03	EZP	◎	Paper tape(4mmPitch)	f180mm (7in.)	5,000
MCR10	EZP	◎	Paper tape(4mmPitch)	f180mm (7in.)	5,000
MCR18	EZP	◎	Paper tape(4mmPitch)	f180mm (7in.)	5,000

Reel(φ180mm) : Compatible with JEITA standard "EIAJ ET-7200B"
◎ : Standard product

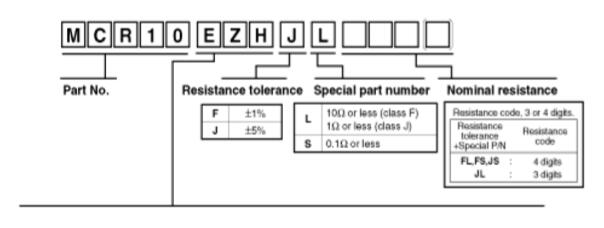

●厚膜电阻器 : 低电阻型

封装型号代码

Part No.	Code	Resistance tolerance		Packaging specifications	Reel	Basic ordering unit(pcs)
Part No.	Code	J(± 5%)	F(± 1%)	Packaging specifications	Reel	Basic ordering unit(pcs)
MCR10	EZH	◎	◎	Paper tape(4mmPitch)	f180mm (7in.)	5,000
MCR18	EZH	◎	◎	Paper tape(4mmPitch)	f180mm (7in.)	5,000
MCR25	JZH	◎	◎	Embossed tape(4mmPitch)	f180mm (7in.)	4,000
MCR50	JZH	◎	◎	Embossed tape(4mmPitch)	f180mm (7in.)	4,000
MCR100	JZH	◎	◎	Embossed tape(4mmPitch)	f180mm (7in.)	4,000

Reel(φ180mm) : Compatible with JEITA standard "EIAJ ET-7200B"
◎ : Standard product

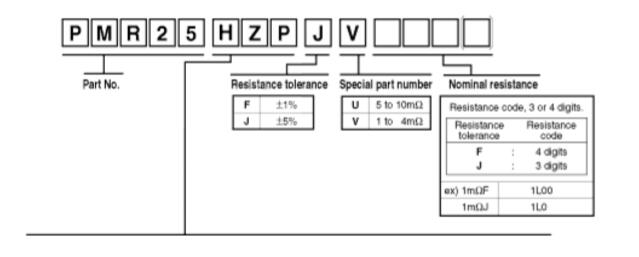

●金属盘电阻器 : 超低电阻型

封装型号代码

Part No.	Code	Resistance tolerance		Packaging specifications	Reel	Basic ordering unit(pcs)
		J(± 5%)	F(± 1%)
PMR03	EZP	◎	-	Paper tape(4mm Pitch)	f180mm (7in.)	5,000
PMR25	HZP	◎	◎	Embossed tape(4mm Pitch)	f180mm (7in.)	2,000
PMR50	HZP	◎	◎	Embossed tape(4mm Pitch)	f180mm (7in.)	2,000
PMR100	HZP	◎	◎	Embossed tape(4mm Pitch)	f180mm (7in.)	2,000

Reel(φ180mm) : Compatible with JEITA standard "EIAJ ET-7200B"
◎ : Standard product

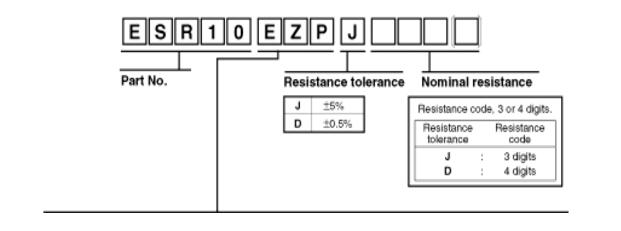

●厚膜电阻器 : 抗波动型

封装型号代码

Part No.	Code	Resistance tolerance			Packaging specifications	Reel	Basic ordering unit(pcs)
Part No.	Code	J(± 5%)	F(± 1%)	D(± 0.5%)	Packaging specifications	Reel	Basic ordering unit(pcs)
ESR03	EZP	◎	◎	◎	Paper tape (4mm Pitch)	f180mm (7in.)	5,000
ESR10	EZP	◎	◎	◎	Paper tape (4mm Pitch)	f180mm (7in.)	5,000
ESR18	EZP	◎	◎	◎	Paper tape (4mm Pitch)	f180mm (7in.)	5,000

Reel(φ180mm) : Compatible with JEITA standard "EIAJ ET-7200B"
◎ : Standard product

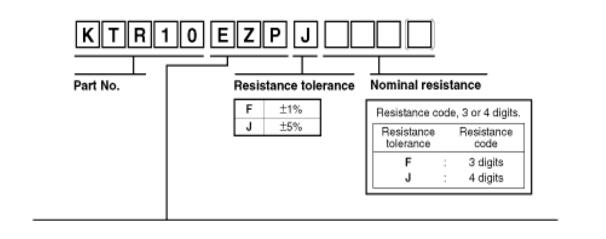

●厚膜电阻器 : 耐高压

封装型号代码

Part No.	Code	Resistance tolerance		Packaging specifications	Reel	Basic ordering unit(pcs)
Part No.	Code	J(± 5%)	F(± 1%)	Packaging specifications	Reel	Basic ordering unit(pcs)
KTR03	EZP	◎	◎	Paper tape (4mm Pitch)	f180mm (7in.)	5,000
KTR10	EZP	◎	◎	Paper tape (4mm Pitch)	f180mm (7in.)	5,000
KTR18	EZP	◎	◎	Paper tape (4mm Pitch)	f180mm (7in.)	5,000

Reel(φ180mm) : Compatible with JEITA standard "EIAJ ET-7200B"
◎ : Standard product

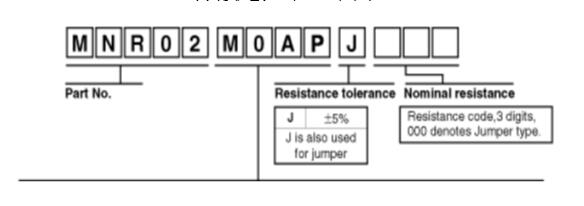

●厚膜电阻器 : 网络型

封装型号代码

Part No.	Code	Resistance tolerance	Packaging specifications	Reel	Basic ordering unit(pcs)
		J(± 5%)
MNR02	M0AP	◎	Paper tape(2mmPitch)	f180mm (7in.)	10,000

MNR04	M0AP	◎	Paper tape(2mmPitch)	f180mm (7in.)	10,000
MNR12	E0AP	◎	Paper tape(4mmPitch)	f180mm (7in.)	5,000
MNR14	E0AP	◎	Paper tape(4mmPitch)	f180mm (7in.)	5,000

MNR32	J0AB	◎	Embossed tape(4mmPitch)	f180mm (7in.)	4,000
MNR34	J5AB	◎	Embossed tape(4mmPitch)	f180mm (7in.)	4,000

Reel(φ180mm) : Compatible with JEITA standard "EIAJ ET-7200B"
◎ : Standard product

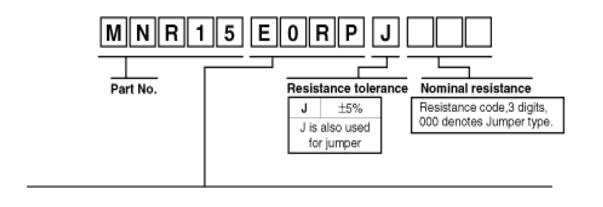

●厚膜电阻器 : 8元素网络型

封装型号代码

Part No.	Code	Resistance tolerance	Packing specifications	Reel	Basic ordering unit(pcs)
		J(±5%)
MNR15	E0RP	◎	Paper tape(4mmPitch)	f180mm (7in.)	5,000

MNR18	E0AP	◎	Paper tape(4mmPitch)	f180mm (7in.)	5,000
MNR35	J5R	◎	Embossed tape(4mmPitch)	f180mm (7in.)	4,000

Reel(φ180mm) : Compatible with JEITA standard "EIAJ ET-7200B"
◎ : Standard product

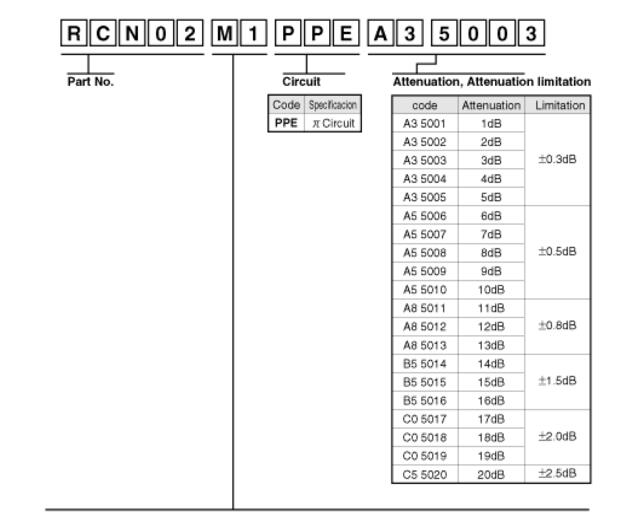

●厚膜电阻器 : 贴片式衰减型

封装型号代码

Part No.	Packing specifications	Reel	Basic ordering unit(pcs)
M1	Paper tape(2mmPitch)	f180mm (7in.)	10,000

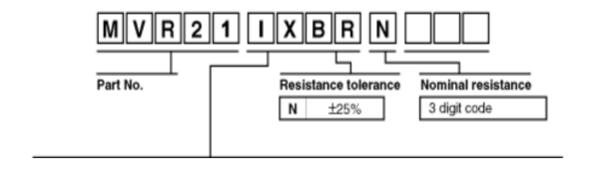

●厚膜电阻器 : 贴片式微条型

封装型号代码

Part No.	Code	Resistance tolerance	Packing specifications	Reel	Basic ordering unit(pcs)
Part No.	Code	N(±25%)	Packing specifications	Reel	Basic ordering unit(pcs)
MVR21*	IXBR	◎	Embosses tape(4mm Pitch)	f180mm (7in.)	3,000
MVR22	HXBR	◎	Embosses tape(4mm Pitch)	f180mm (7in.)	2,000
MVR34	HXBR	◎	Embosses tape(4mm Pitch)	f180mm (7in.)	2,000
MVR32	HXBR	◎	Embosses tape(4mm Pitch)	f180mm (7in.)	2,000
MVR32	KXBR	◎	Embosses tape(4mm Pitch)	f268mm (10.5in.)	5,000
