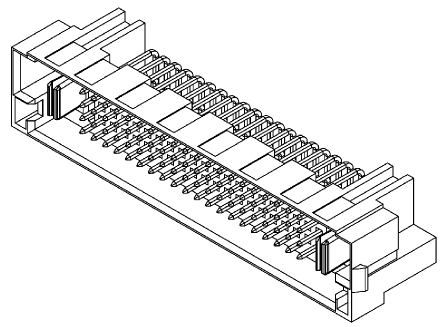

MPTC-02-24-02-6.30-01-L-V,767-7017,Samtec MPTC PowerStrip 系列 28路 2mm节距 (4排) 直 PCB 针座 MPTC-02-24-02-6.30-01-L-V, 焊接端接, 24.7A, 通孔 ,Samtec
These MPTC Series of 2 mm pitch, 25 A, Signal, Power, Combo System hybrid Terminal Backplane strips have 0.25 μm Gold plating on the contact area and Matte Tin plating on the PCB tails. This range of MPTC Series of 2 mm pitch, 25 A, Signal, Power, Combo System hybrid Terminal Backplane strip are available in Vertical and Horizontal / Right Angle configurations with the Right Angle versions having a Screw Down feature, ?3.56 mm, see stock numbers 767-7004 and 767-7010 .
Insulator Material: Black LCP
Operating temperature range: -55 → 105 °C
MPTC-xx-xx-01-6.30-01-L-V: suitable for 1.57 mm thick PCBs
MPTC-xx-xx-02-6.30-01-L-V: suitable for 3.18 mm thick PCBs
MPTC-xx-xx-01-xx-xx-L-RA-SD: suitable for 1.57 mm thick PCBs
MPTC-xx-xx-02-xx-xx-L-RA-SD: suitable for 3.18 mm thick PCBs

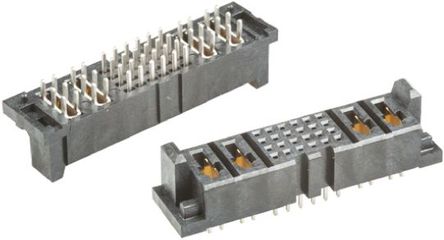

For mating MPSC Series Sockets see stock number 767-6963 typical.
|
