Artesyn Embedded Technologies 175W 单输出 嵌入式开关模式电源 SMPS LPS172-C, 120 → 300 V dc, 85 → 264 V ac输入, 5V输出

Astec 175W Switch Mode Single Output AC/DC Power Supply - LPS 170 Series

175W switch mode AC/DC power supply with a wide range single adjustable output and high efficiency. These AC/DC power adapters have active power factor correction, low output ripple, a built-in EMI filter and are supplied with a cover fitted.

Wide range adjustable output
Remote sense on main input
Power fail and remote inhibit
5V standby output and 12V auxiliary output
High efficiency of 75% typical at full load
Single wire current sharing
Low output ripple
Built-in EMI filter
Safety ground leakage current of 1.0mA @ 50/60 Hz, 264 VAC input
Overvoltage, overload and thermal overload protection
Active power factor correction compliance to IEC EN61000-3-2
EMC compliance to FCC Class B conducted, CISPR 22 Class B conducted, EN55022 Class B conducted, VDE 0878 PT3 Class B conducted

注

The 75W output power for this AC/DC power supply is based on a convection rating with a cover fitted. Without a cover this output power would be 110W. The maximum 175W output power for this AC/DC power supply can only be obtained by use of a cooling fan giving 30 cfm forced air, with a cover fitted this rating would be 130W.
Derating from 50 to 70°C is 2.5% per °C.

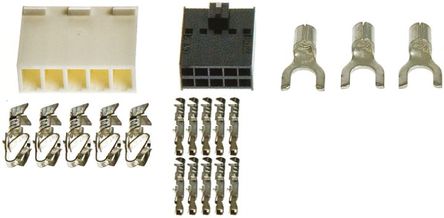

Suitable connecting kit for these AC/DC power supplies: stock number 151-666

认可

VDE; UL Recognised; CSA Certified; NEMKO; CB

标准

VDE: 0805/EN60950 (IEC950), UL1950, CSA 22.2-234 Level 3, NEMKO: EN 60950/EMKO-TUE
