10032000+10047000+11286100,493-480,Epic Contact H-DD 系列 42 针 插座 大负荷电源连接器套件 面板插座套件 10032000+10047000+11286100, PG21 螺纹尺寸, 额定10A, 250 V 交流 ,Epic Contact
HDD, 42 way inserts housed in the H-BE10 range of hoods and housings with cable to cable couplers. A cable gland allowing multicore cable between 13·5-15mm diameter. Panel cut-out 60mmx35mm.
| Kit Contents | |
| Contact Part No. | Description |
| Plug kit | |
| 10.043500 | Top entry hood PG21 |
| 11.2851 | 42-pin male insert |
| 12.9609 | PG21 cable gland |
| w/rubber bush 13·5-15mm | |
| 10.0485 | Hood dust cover |
| Panel socket kit | |

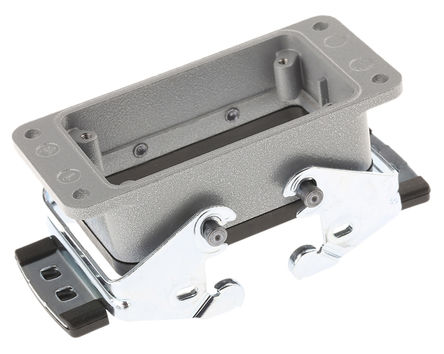

| 10.0320 | Bulkhead housing |
| 11.2861 | 42 way female insert |

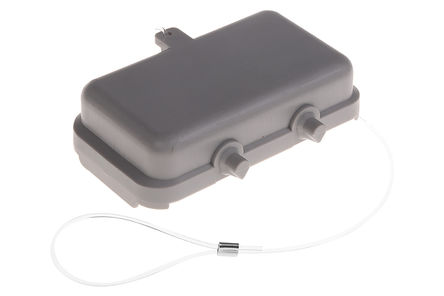

| 10.0470 | Housing dust cover |
Crimps contacts to be ordered separately.
|
|
