23.3060-22,103-8573,Multi Contact 23.3060-22 红色 4mm 插座, 1kV 32A, 镀金触点 ,Multi Contact
Length: 33 mm, mounting hole ?: 12.5

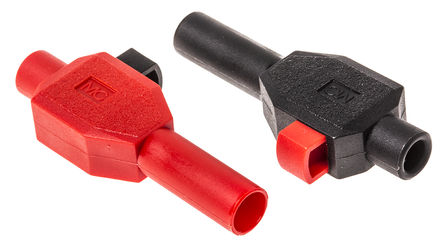

Fully insulated 4 mm laboratory safety socket with PVC thread and 6.3 x 0.8 mm plug connector. Suitable for laboratory safety cables.
| Max. Operating temperature: | 80 °C |
| Max. Continuous current: | 32 A |
| Test voltage: | 3000 V |
| Flashover voltage at | |
| 5 mm panel thickness: | 8.5 kV |
| Socket: | Turned Brass, gold-plated |
|
|
|
|
